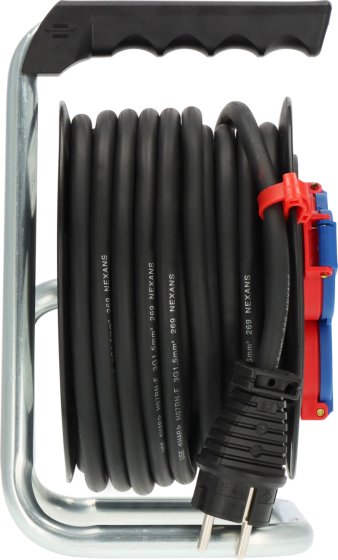

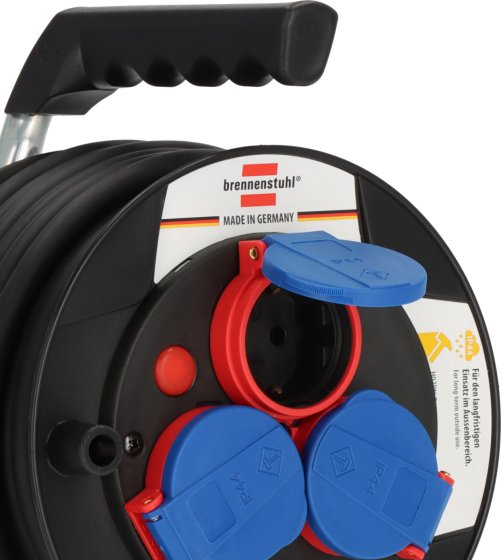

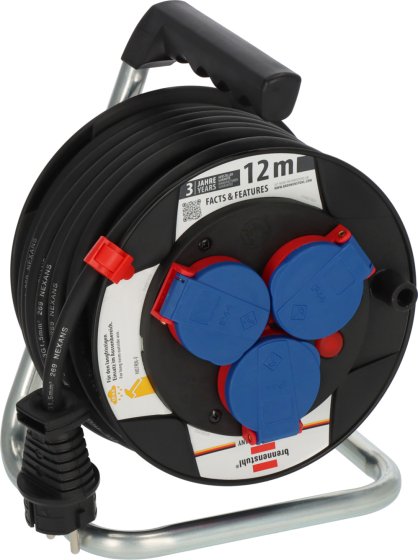

Garant Compact IP44 Building Site Cable Reel with 12m Cable (Cable Reel Extension Lead for Building Site use and permanent Outdoor Use, Made in Germany)
Description
Description
The Garant construction site cable reel with 12m cable is ideal for robust and tough construction site use and for permanent outdoor use thanks to the oil-resistant RN cable and the IP44 protection rating. Thanks to the ergonomically shaped handle, comfortable and easy transport of the extension reel is ensured. The cable reel for outdoor use also impresses with the following features:
- Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical impacts
- Protection class: IP44
- Cable designation: H07RN-F 3G1,5
- Cable length: 12m
- Cable quality: Rubber neoprene
- Cable colour: Black
- Drum diameter: 180mm
For use on construction sites
- For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Protected against foreign bodies and splash water
- Protection against splash water from all directions
Technical data
Technical data
- Capacity in coiled state 230V: 1400 W
- Capacity in uncoiled state 230V: 3500 W
- Usage: Outdoor
- Housing material: Plastic
- Area of use: Outdoor
- Number of earthed socket outlets: 3
- Number of CEE socket outlets:
- With CABLEPILOT: No
- With plug storage: No
- With Bretec: No
- Cable quality: Rubber-Neoprene
- Cable length: 12 m
- Cable designation: H07RN-F 3G1,5
- With residual current circuit breaker (RCCB): No
- Reel diameter: 180 mm
- With carrying handle: Yes
- Degree of protection (IP): IP44
- Nominal input voltage: 230 V
- Width of product (without packaging): 19 cm
- Weight of product (without packaging): 2,41 kg
- Height of product (without packaging): 25 cm
- Length of product (without packaging): 15,50 cm
Downloads
Downloads
All products are subject to technical changes
